6162 Kanomax High Temperature Anemometer

$3259.00 -- Measure velocity of air as hot as 752 degrees F (400 C)

Purchase 6162 Kanomax High Temperature Anemometer

6162 High Temperature Anemometer Product Sheet

6162 High Temperature Anemometer User Manual

6162 Kanomax Hot Air Anemometer--the industry standard for measuring velocity of hot air up to 752 deg F and the instrument of choice for checking air movement in blast furnaces, smelters, annealing ovens, exhaust systems, chimneys and stacks. Choose from three interchageable high temperature probes for different applications and temperature ranges. Simulataneous display of velocity and temperature. On board memory stores your readings and the integral display lets you review data in graph form. RS232 download to your PC. The 6162 base unit and one or mores probes is required to make a complete system.

Features of the Kanomax 6162 high-temperature anemometer

Simultaneous display of air velocity and temperature
Improved response time by the addition of secondary temperature compensation circuit
Easy review of time history by graphic display
Memory function of maximum 999 separate measurement data
Built-in RS-232 C serial interface for connection to PC.
Analog output and remote control terminal
Probe Compatibility feature allows you to change probes easily

Order extra probes and accessories below

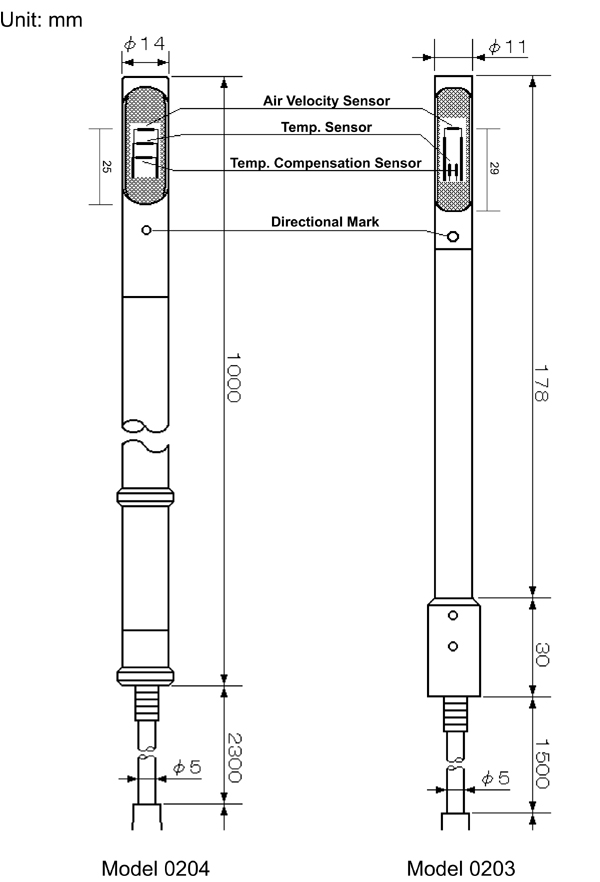

6162 Probe Options (Click Picture for dimensions)



Model 0203	Model 0204	Model 0205 NEW

6162 Specifications

Model		Probe Model 0203 for middle temperature	Probe Model 0204 / 0205 for high temperature
Air Velocity	32 - 212�F (0 - 100�C)	40 - 9840fpm (0.2 - 50m/s)
	212 - 392�F (100 - 200�C)	80 - 9840fpm (0.4 - 50m/s)
	392 - 572�F (200 - 300�C)	n/a	138 - 9840fpm (0.5 - 50m/s)
	572 - 752�F (300 - 400�C)	n/a	197 - 9840fpm (1.0 - 50m/s)
Air Temperature	Range	32 - 392�F (0 - 200�C)	32 - 932�F (0 - 500�C)
Accuracy	Air Velocity	+/- 3%
	Air Temperature	+/- 1% of reading + 1�C
Pressure (Option)	Range	-5.00 to +5.00 kPa
Outputs	Digital	RS-232C
	Printer	Printing calculation results and measurements.
	Analog	DC 0 to 1 V
Input	Remote	Start / Stop function
Power Supply		6 � 1.5 V C cells / AC Adapter (100 to 240 V)
Operating Environment	Main Body	41 - 104 �F (5 - 40 �C)
Weight	Main Unit	4.0 lbs. (1.8 kg)
	Probe	0.4 lbs. (0.2 kg)	1.1 lbs. (0.5 kg)
Dimensions	Main Unit	8.7" x 5.9" x 3.3" (220 x 150 x 85mm)
	Probe	Diameter: 0.43" (11mm) Length: 8.2" (208mm)	0204	Diameter: 0.43" (11mm) Length: 39.4" (1000mm)
			0205	Diameter: 0.43" (11mm) Length: 19.7" (500mm)
	Extension Rod (Option)	Length: 31.5" (800mm)	Length: 81.5" (2070mm) *Not compatible for 0205
Standard Kit		Operation manual, AC adapter, Analog output cable, Shoulder strap, Batteries
Optional Accessories		Spare Probe, Probe extension cable, Probe extension rod, Probe compression fittings, PC communication cable, Data processing software

Purchase 6162 Kanomax High Temperature Anemometer

Model: 6162 Anemomaster w/ 0203 probe; 6162 Anemomaster w/ 0204 probe; 6162 Anemomaster w/ 0205 probe
