3200 Dwyer Explosion-Proof Pressure Transmitter

$729.00 -- Intrinsically safe pressure transmitter with or without LCD

Purchase 3200 Dwyer Explosion-Proof Pressure Transmitter

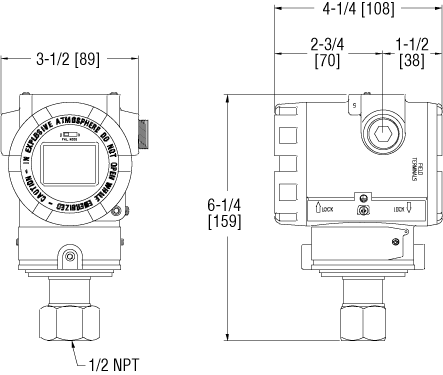

3200 Schematic
3200 User Manual
3200 Approvals US / Canada

Dwyer 3200 Explosion-Proof Pressure Transmitter

HART�, Push Button Configuration, Rangeability (100:1)

The Mercoid� Series 3200 Smart Pressure Transmitter from Dwyer Instruments is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and is programmable using HART� Communication. The Series 3200 is capable of being configured with the zero and span buttons-- a field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Dwyer Series 3200 pressure transmitter is FM approved for use in hazardous (classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.

SPECIFICATIONS for the 3200 Explosion-Proof Differential Pressure Transmitter

Service: Compatible gases, steam, liquids or vapors.

Wetted Materials: 316L SS.

Accuracy: �0.075% FS (@ 20�C).

Rangeability: 100:1 turn down.

Stability: �0.125% FSO/yr.

Temperature Limits:

Process: -40 to 248�F (-40 to 120�C);

Ambient (without LCD): -40 to 185�F (-40 to 85�C);

Ambient (with LCD): -22 to 176�F (-30 to 80�C).

Thermal Effect: �0.125% span/32�C.

Power Requirements: 11.9 to 45 VDC.

Output Signal: 4 to 20 mA/HART� Communication.

Response Time: 0.12 seconds.

Damping Time: 0.25-60 seconds.

Loop Resistance:

Operation: 0 to 1500 Ohm;

HART� Communication: 250 to 500 Ohm.

Electrical Connection: Two 1/2? female NPT conduit, scew terminal.

Process Connection: 1/2? female NPT.

Display: Optional 5 digit LCD.

Enclosure Rating: NEMA 4X (IP66) and explosion-proof for Class I, Div I, Groups A, B, C and D.

Weight: 5.5 lb (2.5 kg)

Agency Approvals: CE, FM.

FEATURES of the Dwyer 3200 Explosion Proof Pressure Transmitter

* Completely configurable using zero/span buttons (no calibrator required)

* Rangeability (100:1)

* High accuracy (0.075%)

* Automatic ambient temperature compensation

* Fail-mode process function

Selectable Engineering Units for the Dwyer 3200

PSI, BAR, mBAR, g/cm2, PA, kPA, Torr, ATM, MPA, IN H2O, IN Hg, ft H2O, mm H2O, mm Hg, Kg/cm2, %

Choose from these models:

Model	Range psi (kPa)	Calibrated Span Min to Max psi (kPa)	Max Pressure psi (bar)	LCD Display
3200G-1-FM-1-1 3200G-2-FM-1-1 3200G-3-FM-1-1 3200G-4-FM-1-1 3200G-1-FM-1-1-LCD 3200G-2-FM-1-1-LCD 3200G-3-FM-1-1-LCD 3200G-4-FM-1-1-LCD	-14.5 to 21 (-100 to 150) -14.5 to 217 (-100 to 1500) 0 to 725 (0 to 5000) 0 to 3600 (0 to 25000) -14.5 to 21 (-100 to 150) -14.5 to 217 (-100 to 1500) 0 to 725 (0 to 5000) 0 to 3600 (0 to 25000)	0.22 to 21 (1.5 to 150) 2 to 217 (15 to 1500) 7.25 to 725 (50 to 5000) 36 to 3600 (250 to 25000) 0.22 to 21 (1.5 to 150) 2 to 217 (15 to 1500) 7.25 to 725 (50 to 5000) 36 to 3600 (250 to 25000)	58 (4) 580 (40) 2000 (138) 10000 (690) 58 (4) 580 (40) 2000 (138) 10000 (690)	No No No No Yes Yes Yes Yes

Order Accessories Below:

Purchase 3200 Dwyer Explosion-Proof Pressure Transmitter

Choose Model: 3200G-1-FM-1-1; 3200G-2-FM-1-1; 3200G-3-FM-1-1; 3200G-4-FM-1-1; 3200G-1-FM-1-1-LCD; 3200G-2-FM-1-1-LCD; 3200G-3-FM-1-1-LCD; 3200G-4-FM-1-1-LCD
